MP3000iec Series

MP3300iec

Обзор

MP3300iec is a compact machine controller with 4, 8 or 20 axes of synchronized control.
IEC Programming Environment and Controller-Centric Commissioning using MECHATROLINK-III motion network

One software platform

MotionWorks IEC, allows efficient programming and handling of applications within a standard IEC 61131-3 environment
Advanced camming and gearing functions
The MECHATROLINK-III open Ethernet based motion network (100 Mbps) enables machine configuration from a single location with one software tool. Using self-tuning abilities of a servo system commissioning time is greatly reduced.
Open standards EtherNet/IP and Modbus TCP to connect to many HMI and PLC in the market
The controller can operate local amplifier outputs. This reduces panel cost and space requirements when just a couple of outputs are necessary.
Libraries enable importation of previously developed logic

A Multitude of Options
Choose from ten option cards offered for the expansion slot to accommodate most machine requirements.

Технические детали

Управляемые оси
4, 8, 20, 32, 62

Соответствие стандартам
cUL, CE, UL

Соответствие МЭК
✓ Да

Количество дополнительных модулей
8

Промышленная шина сети управления движением
MECHATROLINK-III, Ethernet/IP

Загрузки

Имя
MPiec Series - Machine Controller Overview; Brochure No, YEU_MuC_MPiec_DE_V3 Brochures \| немецкий	Brochures	немецкий
MPiec Series - Machine Controller Overview; Brochure No, YEU_MuC_MPiec_EN_V3 Brochures \| английский	Brochures	английский
MPiec Series - Machine Controller Overview; Brochure No, YEU_MuC_MPiec_FR_V3 Brochures \| французский	Brochures	французский
Base Unit with DC Power Supply, 3 Slots, MP3300iec JEPMC BU3303-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE \|	CAD/CAE
Base Unit with DC Power Supply, 1 Slot, MP3300iec JEPMC BU3304-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE \|	CAD/CAE
Base Unit, 5 Slots, MP3200iec JEPMC BUB3005-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE \|	CAD/CAE
Base Unit, 8 Slots, MP3200iec JEPMC BUB3008-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE \|	CAD/CAE
CPU-201 Unit for MP3200 JEPMC CP3201-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE \|	CAD/CAE
Power Supply 100 - 200 VAC Input, MP3200iec JEPMC PSA3012-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE \|	CAD/CAE
Replacement Power Supply Side Cover for MP3300iec JEPMC OP3001-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE \|	CAD/CAE
Power Supply 24 VDC Input, MP3200iec JEPMC PSD3012-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE \|	CAD/CAE
EPLAN Makros MPiec MP2300Siec, MP23100iec, MP3200iec, Base Units, CPUs, IO Options, Power Supply Units, EPLAN \|	EPLAN
YASKAWA MP3300iec Machine Controller Hardware Manual PMC-U-MP33004, PMC-U-MP33008, PMC-U-MP33020, PMC-U-MP33104, PMC-U-MP33108, PMC-U-MP33120, PMC-U-MP33320, PMC-U-MP33332, PMC-U-MP33420, PMC-U-MP33432, PMC-U-MP33532, PMC-U-MP33562, PMC-U-MP33632, PMC-U-MP33662, PMC-U-MP33320-RBT, PMC-U-MP33532-RBT, PMC-U-MP33420-RBT, PMC-U-MP33632-RBT, Manual No. YAI-SIA-IEC-7, Published Dec 2022 Technical documentation \| английский	Technical documentation	английский
Machine Controller MECHATROLINK-Ⅲ Equipment Series \| EU and UK Declaration of Conformity Machine Controller MECHATROLINK-Ⅲ Equipment Series JEPMC-MT model JEPMC-MT*****-E JEPMC-GW model JEPMC-GW***-E JAMSC- model JAMSC-******** DoC-No. 900-213-350 issued July 25th, 2022 Certification \| английский	Certification	английский
Declaration of Conformity MP3000iec Series MP3200iec, MP3300iec, Document No. DOC_MP3xxxiec Published May 2017 Certification \|	Certification
Machine Controller MP3000 Series \| EU and UK Declaration of Conformity Machine Controller MP3000 Series, Model MP3200 model JEPMC-********** MP3300 model JAPMC-CP33***** MP3300 model JAPMC-RM3301-E MP3300 model JAPMC-SF2300-E MP3300 model JAPMC-MC23*-E MP3300 model JAPMC-CM23*-E MP3300 model JEPMC-BU33***** DoC-No. 900-212-255 issued July 25th, 2022 Certification \| английский	Certification	английский

Links la quick

MP3300iec

Обзор

Технические детали

Загрузки

Связанные применения

Long-term relationship with Visser Horti Systems

MP3300iec RBT machine controller optimizes baking process

Masks "made in Germany"

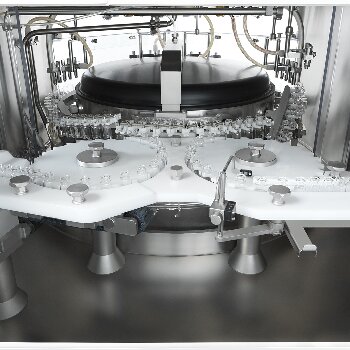

Efficiency and sustainability of an aseptic filling line of vials and bottles
