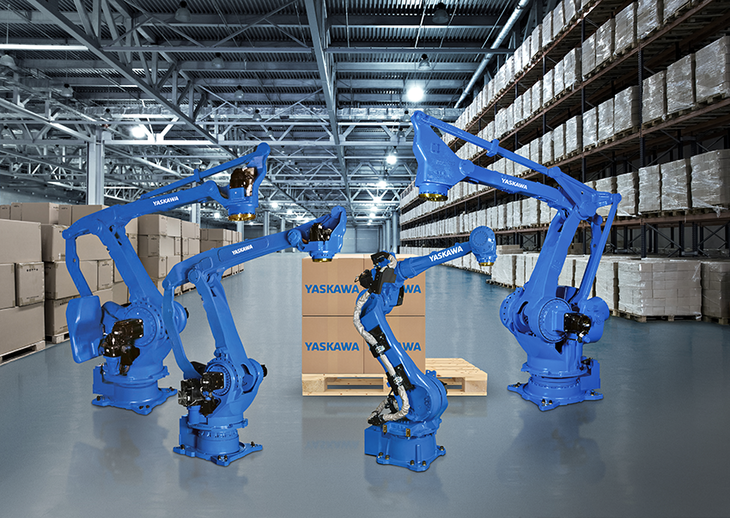

PL Series
PL80
Slim & flexible 5-axis Palletizing Robot
Обзор
The MOTOMAN PL80 robot easily palletizes loads weighing up to 80 kg and has enormous axis speeds to ensure high palletizing cycles. Thanks to its kinematics, the small palletizing and handling robot of the Motoman PL series is ideally suited for box, carton and pack palletizing, for example in the growing logistics and e-commerce market. Very high palletizing cycles are required here. The MOTOMAN PL80 meets these requirements with over 800 cycles per hour.
Furthermore, the MOTOMAN PL80 also impresses with its low overall height, slim design and small footprint, in areas of application where space is often at a premium. Despite its very compact and slim design, the manipulator has sufficient horizontal and vertical reach for versatile applications, for example in end-of-line palletizing.
Технические детали
- Количество осей
- 5
- Полезная нагрузка
- 80 kg
- Максимальный Рабочий Диапазон
- 2061 mm
- Повторяемость
- 0.03 mm
- Вес
- 565 kg
- Источник питания
- 4.5 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 180 °/s
- Maximum Speed U Axis
- 180 °/s
- Maximum Speed B Axis
- 180 °/s
- Maximum Speed T Axis
- 500 °/s
- Варианты монтажа
- Floor
- Дальнейшие уточнения
- x Нет
