GP Series
GP12
6-Axis Handling Robot with 12 kg payload
Обзор

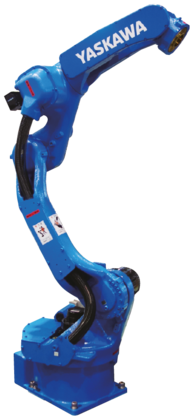

The GP12 is a highly versatile 6-axis industrial robot with 12 kg payload, 1440 mm reach and outstanding repeatability of +/- 0.02 mm.
You will achieve high transfer rates with this extremely fast and efficient GP12 robot, offering a perfectly tuned payload / speed / wrist allowable moment combination. Designed with the latest YASKAWA Sigma7-Servo Motor Generation, the GP12 offers improved acceleration/deceleration control. The small footprint and slim arm design allows for minimum installation space and minimizes interference with peripheral devices. Installation is quick and efficient - media cables are guided through the hollow arm and wrist structure.
This robot is also available with high IP65/67 dust & liquid protection to operate in harsh environments.

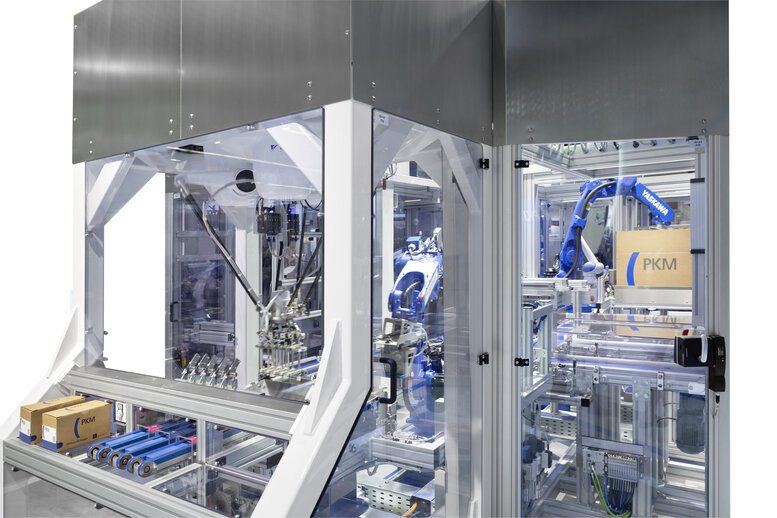

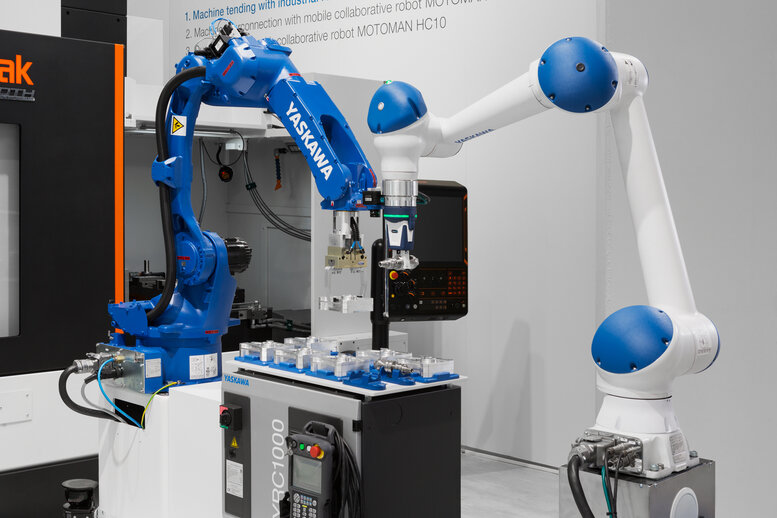

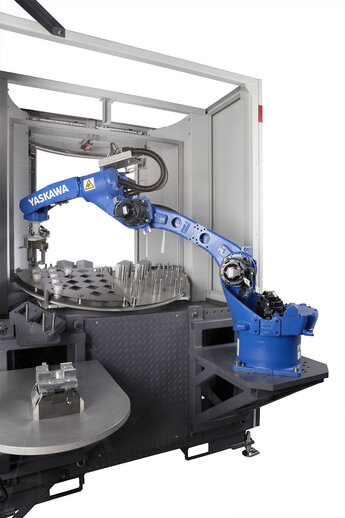

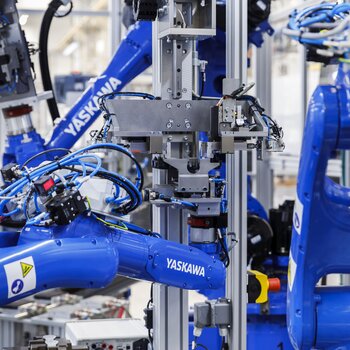

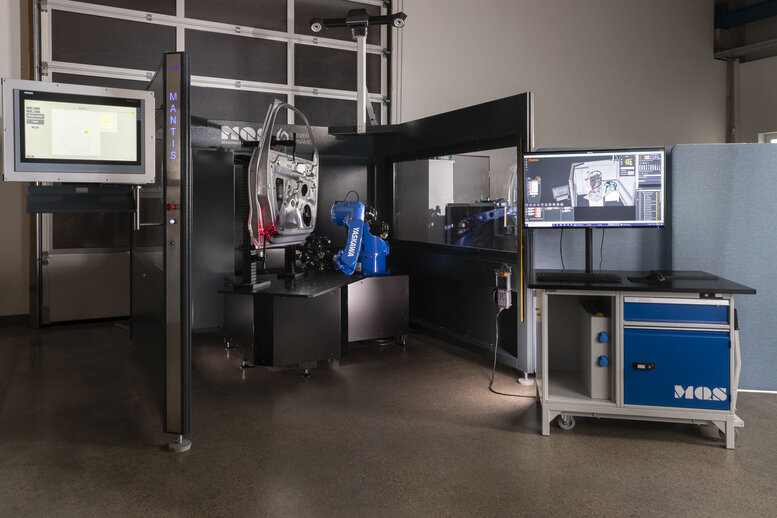

The GP12 is perfect for a wide range of applications, including machine tending, material handling, assembly, additive manufacturing, dispensing, grinding/polishing and quality inspection. Also in the field of e-Commerce, Consumer Good Logistics and Postal Automation, the GP12 is an attractive candidate for outstanding throughput, in combination with Intelligent Machine Vision.
Технические детали
- Количество осей
- 6
- Полезная нагрузка
- 12 kg
- Максимальный Рабочий Диапазон
- 1440 mm
- Повторяемость
- 0.02 mm
- Вес
- 150 kg
- Источник питания
- 1.5 kVA
- Maximum Speed S Axis
- 260 °/s
- Maximum Speed L Axis
- 230 °/s
- Maximum Speed U Axis
- 260 °/s
- Maximum Speed R Axis
- 470 °/s
- Maximum Speed B Axis
- 470 °/s
- Maximum Speed T Axis
- 700 °/s
- Варианты монтажа
- Ceiling, Wall, Floor
- Дальнейшие уточнения
- x Нет
